PMB Suspension
Öhlins TTX22m.2 Spare Parts
Öhlins TTX22m.2 Spare Parts
Prix habituel
CHF 150.00
Prix habituel
Prix promotionnel
CHF 150.00
Prix unitaire
par
Taxes incluses.
Impossible de charger la disponibilité du service de retrait
Installation of TTX22m.2/TTX22m parts must be done by a qualified professional

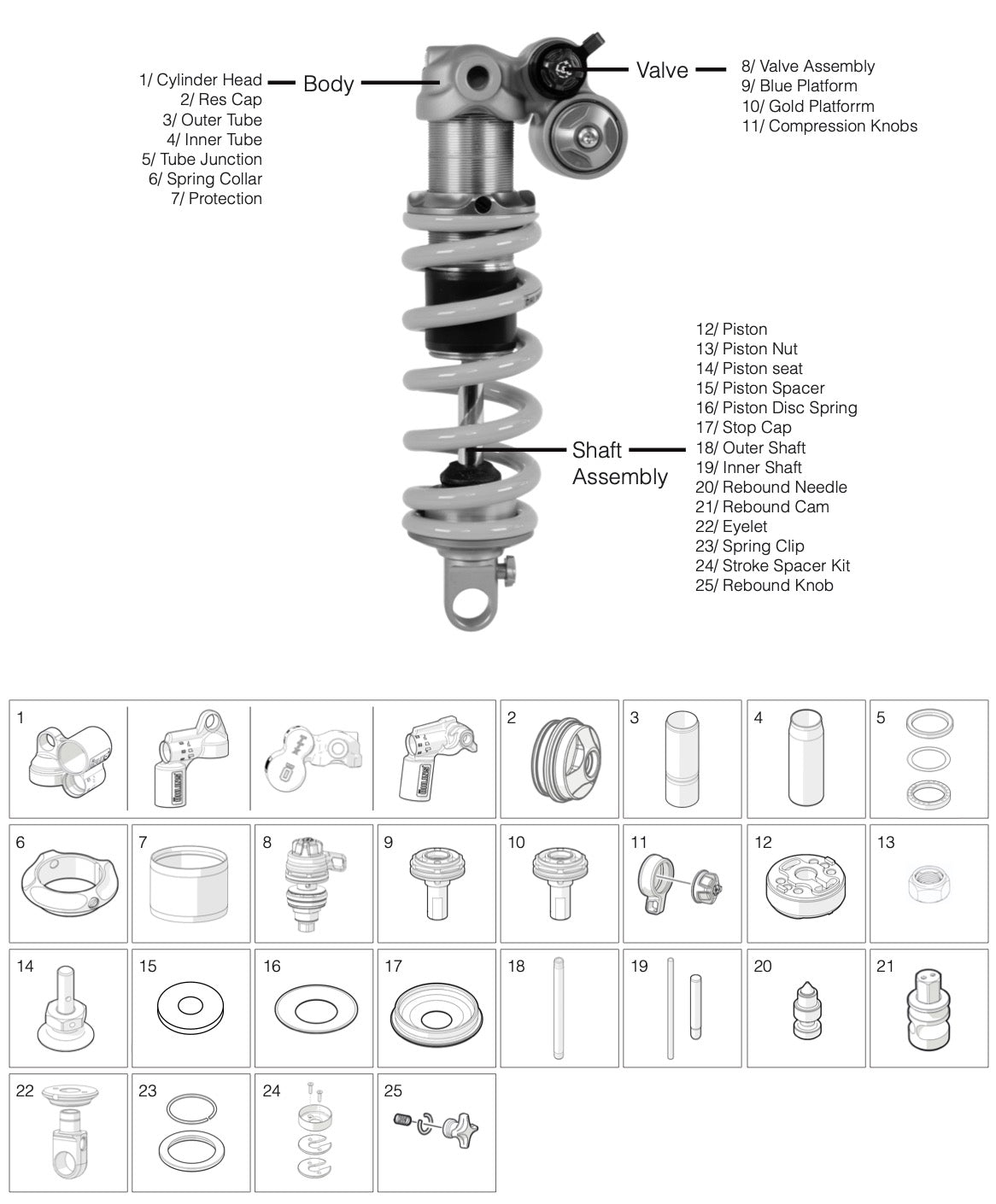

TTX22m.2/TTX22m Parts
| PN | Description | Type |
|---|---|---|
| 00184-19 | Shim standard 8/19/0.10 | Shim |
| 00185-15 | Shim standard 8/15/0.15 | Shim |
| 00185-16 | Shim standard 8/16/0.15 | Shim |
| 00185-19 | Shim standard 8/19/0.15 | Shim |
| 00185-60 | Shim standard 8/10/0.15 | Shim |
| 00329-13 | Nitrogen res circlip | Circlip / Snap Ring |
| 00638-68 | Piston O-ring | O-ring |
| 00884-02 | Valve ball (spare) | Ball |
| 01410-10 | Shim standard 6/10/0.10 | Shim |
| 01410-19 | Shim standard 6/19/0.10 | Shim |
| 01410-20 | Shim standard 6/20/0.10 | Shim |
| 01415-10 | Shim standard 6/10/0.15 | Shim |
| 01415-20 | Shim standard 6/20/0.15 | Shim |
| 01420-12 | Shim standard 6/12/0.20 | Shim |
| 01420-13 | Shim standard 6/13/0.20 | Shim |
| 01420-14 | Shim standard 6/14/0.20 | Shim |
| 01430-10 | Shim standard 6/10/0.30 | Shim |
| 01449-06 | Washer 6/16/1.5 (black) aka "Washer" (SPL) | Piston Part |
| 01474-01 | Valve Spring (spare) | Spring |
| 05410-01 | Stop screw din551 m6x10 nylon (black) | Screw (nylon) |
| 05410-02 | Stop screw din551 m6x8 nylon | Screw (nylon) |
| 15421-01 | Lock nut M6/4 fujilok u-nut £ (et pas 15421-21) | Piston Part |
| 18002-01 | Valve Gold Full Assy (DH) - FULL ASSY | Valve Assy |
| 18002-03 | Valve Blue Full Assy (Pedal platform) - FULL ASSY | Valve Assy |
| 18005-02 | Protection Sleeve m.2 | Protection Sleeve |
| 18008-03 | Cylinder Head Side-by-side | Cylinder Head |
| 18008-07 | Cylinder Head Side-by-side m.2 "forged" | Cylinder Head |
| 18010-02 | Twin Tube Valve Holder (Top of TT) | Twin Tube Part,Twin Tube Junction |
| 18011-02 | Twin Tube Valve Seat | Twin Tube Part,Twin Tube Junction |
| 18012-04 | Rebound Adjuster Cam (cylinder) m.1 | End Eye / Bracket / Eyelet,Rebound Adjuster |
| 18012-06 | Rebound Adjuster Cam (cylinder) m.2 | End Eye / Bracket / Eyelet,Rebound Adjuster |
| 18014-01 | Adjustment Pin | Pin |
| 18021-04 | End eye 16 mm "Bracket Uniball" | End Eye / Bracket / Eyelet |
| 18021-05 | End eye SBC / Specialized (square mount) | End Eye / Bracket / Eyelet |
| 18022-06 | Piston Holder | Piston Part |
| 18025-01 | Stop cap flush 0mm | Stop Cap |
| 18025-03 | Stop cap -2.5mm | Stop Cap |
| 18025-04 | Stop cap -5mm | Stop Cap |
| 18025-05 | Stop cap -7.5mm | Stop Cap |
| 18026-01 | Spring collar / Adjust nut Imperial | Spring Collar / Ajust Nut |
| 18028-03 | Rebound Needle | Shaft Part,Piston Part |
| 18029-01 | Spring clip 36/16 -2.5 (imperial) | Spring Clip (spring to eyelet) |
| 18029-02 | Spring clip 36/16 +3.5 (imperial) | Spring Clip (spring to eyelet) |
| 18029-03 | Spring clip for stiff springs (-15+) (imperial) | Spring Clip (spring to eyelet) |
| 18033-01 | Gold assy (old PN) "End Piece Valve" | Valve Assy |
| 18033-02 | Valve Blue End Piece | Valve Assy |
| 18033-02 | Blue Assy (old PN) | Valve Assy |
| 18040-01 | Knob Rebound L25 | Knob |
| 18040-02 | Knob Rebound L20 | Knob |
| 18040-03 | Knob Rebound L15 | Knob |
| 18040-04 | Knob Rebound L10.5 | Knob |
| 18044-01 | Circlip Body/Sealhead 32.3x2 (jonc) | Circlip / Snap Ring |
| 18045-02 | Shim Disc Spring Stainless | Piston Part |
| 18046-01 | Twin Tube Shim 30/24/01 - super fin | Twin Tube Part,Twin Tube Junction |
| 18069-01 | Cylinder Head Piggyback | Cylinder Head |
| 18069-04 | Cylinder Head Side-by-side m.2 "forged" / alternate PN | Cylinder Head |
| 18069-06 | Cylinder Head Trunnion TR m.2 | Cylinder Head |
| 18102-01 | Knob Rebound with screw | Knob |
| 18102-02 | Knob C/L with screw | Knob |
| 18102-03 | Comp and reb knob kit - TTX22m.2 | Knob |
| 18103-02 | O-ring kit with new bleed plug | Service Kit+Bleed Plugs,Service Kit |
| 18104-01 | Rebuild kit with black bumper | Rebuild kit,Service Kit |
| 18105-01 | End Cap Kit (Reservoir Cap) Gold | Nitrogen Reservoir Cap |
| 18105-01 Black | End Cap Kit (Reservoir Cap) Black | Nitrogen Reservoir Cap |
| 18106-01 | Piston 22 | Piston Part |
| 18108-01 | Protection Sleeve m.1 | Protection Sleeve |
| 18123-01 | DU bushing kit | Bushing |
| 18124-01 | Ball joint kit (rotule) | Mounting Hardware (non-standard) |
| 18145-01 | Cylinder Head Trunnion Piggyback | Cylinder Head |
| 18145-02 | End eye assembly Metric "End eye 15mm" | End Eye / Bracket / Eyelet |
| 18145-03 | Spring collar / Adjust nut m.1 metric (noir) | Spring Collar / Ajust Nut |
| 18145-04 | Spring clip 36.25 kit m.1 "g2" (Metric) (circlip SRH 36.25 (33.95x2)) | Spring Clip (spring to eyelet) |
| 18145-05 | Spring clip 36.25 kit TiN 9 (m.2) (circlip SRH 36.25 (33.95x2)) | Spring Clip (spring to eyelet) |
| 18145-06 | Spring collar / Adjust nut m.2 TiN | Spring Collar / Ajust Nut |
| 18145-07 | End eye TTX22m.2 (require stroke spacer kit) | End Eye / Bracket / Eyelet |
| 18145-10 (m.2) | Valve Assy Kit with no shim no valve | Valve Assy |
| 18145-11 (m.2) | Valve Kit Gold (DH) (valve assy) | Valve Assy |
| 18145-12 (m.2) | Valve Kit Blue (pedal) (valve assy) | Valve Assy |
| 18145-20 | Cup and Stroke spacer kit TTX22m.2 | End Eye / Bracket / Eyelet |
| 18482-01 | Igus bushing kit | Bushing |
| 18486-01 | Bushing 16mm to 15mm (old PN) | Mounting Hardware (non-standard) |
| 19311-01 | Bushing 16->15mm (current PN) | Mounting Hardware (non-standard) |
TTX22m.2/TTX22m Size-Specific Parts
| Full Description | Outter PN | Outer L | Inner PN | Inner L | Type | PNs |
|---|---|---|---|---|---|---|
| Shaft 2.25 (1695) | 2.5 (1691) | 18009-02 | 100.50 | 18054-02 | 87.00 | Shaft + Inner Shaft | 1491-1691-8.5x2.5 / 216x63.5,1495-1695-8.5x2.25 / 216x57.15,1420,1425SBC-216x63.5 |
| Shaft 2.25 | 18009-03 | 94.50 | 18054-03 | 81.00 | Shaft + Inner Shaft | 1496-1696-7.87x2.25 / 200x57.15 |
| Shaft 2.75 | 18009-05 | 105.00 | 18054-15 | 92.00 | Shaft + Inner Shaft | 1492-1692-8.75x2.75 / 222x70 |
| Shaft 3.5 | 18009-04 | 126.20 | 18054-14 | 113.00 | Shaft + Inner Shaft | 1494-1694-10.5x3.5 / 266x89 |
| Shaft 197x48 SBC | 18009-06 | 89.30 | 18054-17 | 76.50 | Shaft + Inner Shaft | SBC 1770,1497-1697-7.87x2 / 200x51,1498-1698-7.5x2 / 190x51 |
| Shaft 55 | 18009-09 | 97.30 | 18054-08 | 84.00 | Shaft + Inner Shaft | All 210/185 mm |
| Shaft 65 | 18009-07 | 107.30 | 18054-19 | 94.10 | Shaft + Inner Shaft | All 230/205 |
| Shaft 75 | 18009-08 | 117.30 | 18054-20 | 104.10 | Shaft + Inner Shaft | All 250/225mm |
| Shaft 3 / Trek TS | 18009-01 | 113.20 | 18054-01 | 100.00 | Shaft + Inner Shaft | 1493-1693-9.5x3 / 241x76 |
| TT 7.5 | 18049-06 | 83.50 | 18048-06 | 59.95 | Tube + Inner Tube | 1498-1698-7.5x2 / 190x51 |
| TT 7.87x2 (1697-7.87x2) | 18049-08 | 93.50 | 18048-08 | 69.95 | Tube + Inner Tube | 1497-1697-7.87x2 / 200x51 |
| TT 7.87x2.25 (1696-7.87x2.25) | 18049-07 | 89.25 | 18048-07 | 65.70 | Tube + Inner Tube | 1496-1696-7.87x2.25 / 200x57.15 |
| TT 8.5 | 8.75 | 18049-02 | 98.80 | 18048-02 | 75.25 | Tube + Inner Tube | 1491-1691-8.5x2.5 / 216x63.5,1495-1695-8.5x2.25 / 216x57.15,1420,1425SBC-216x63.5 |
| TT 9.5 | 18049-01 | 111.25 | 18048-01 | 87.70 | Tube + Inner Tube | 1493-1693-9.5x3 / 241x76 |
| TT 10.5 / Trek TS | 18049-04 | 123.25 | 18048-04 | 99.70 | Tube + Inner Tube | 1494-1694-10.5x3.5 / 266x89 |
| TT 165 | 18049-15 | 18048-15 | Tube + Inner Tube | 165 | ||
| TT 185 | 18049-10 | 90.50 | 18048-10 | 66.95 | Tube + Inner Tube | 185 |
| TT 197x48 SBC | 18049-05 | 87.80 | 18048-05 | 64.25 | Tube + Inner Tube | SBC 1770 |
| TT 205 | 18049-11 | 100.50 | 18048-11 | 76.95 | Tube + Inner Tube | 205 |
| TT 210 | 18049-13 | 95.70 | 18048-13 | 72.15 | Tube + Inner Tube | 210 |
| TT 225 | 18049-12 | 110.50 | 18048-12 | 86.95 | Tube + Inner Tube | 225 |
| TT 230 | 18049-14 | 105.70 | 18048-14 | 82.15 | Tube + Inner Tube | 230 |
| TT 250 | 18049-16 | 115.70 | 18048-16 | 92.15 | Tube + Inner Tube | 250 |
