PMB Suspension

Vorsprung Smashpot V2 Footstud Assembly

Vorsprung Smashpot V2 Footstud Assembly

CHF 35.00
CHF 35.00
Sale Sold out
Taxes included.
Part
View full details
Variant Variant total Quantity Price Variant total

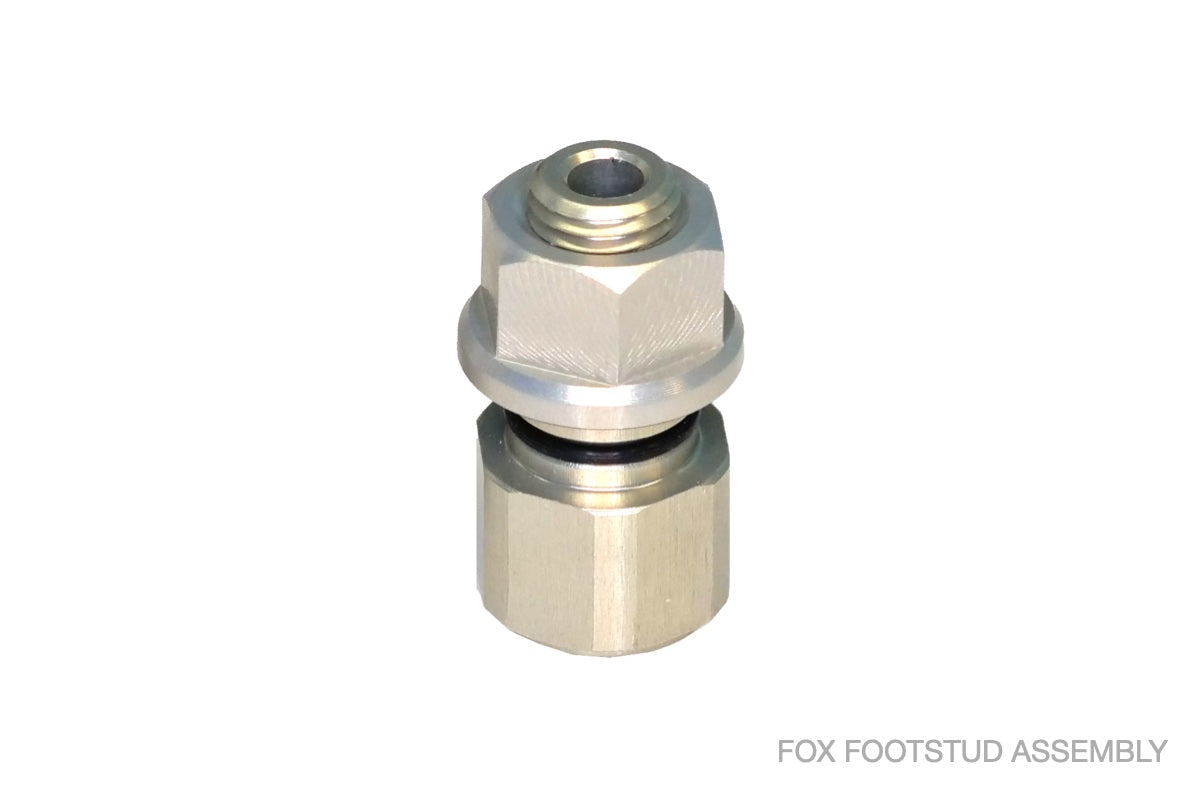

Footstud Fox
Footstud Fox
CHF 35.00/ea		 CHF 0.00
CHF 35.00/ea CHF 0.00

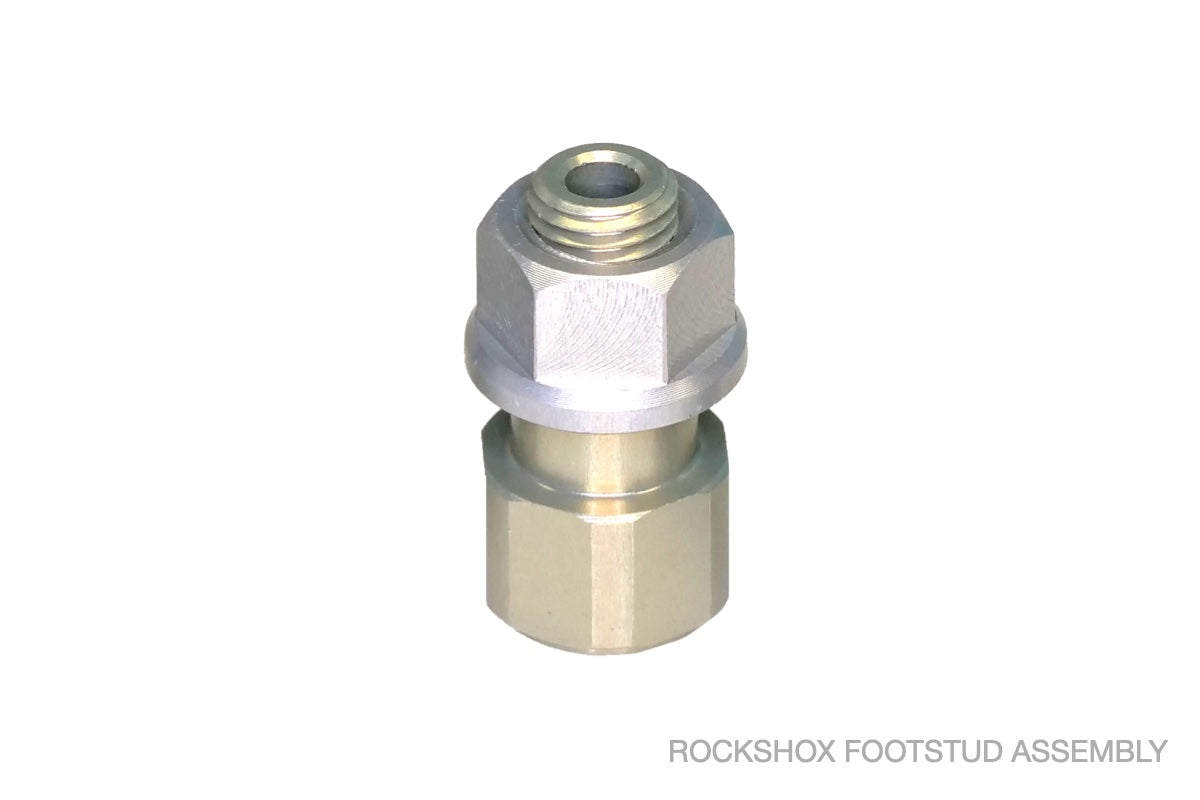

Footstud Rockshox
Footstud Rockshox
CHF 35.00/ea		 CHF 0.00
CHF 35.00/ea CHF 0.00

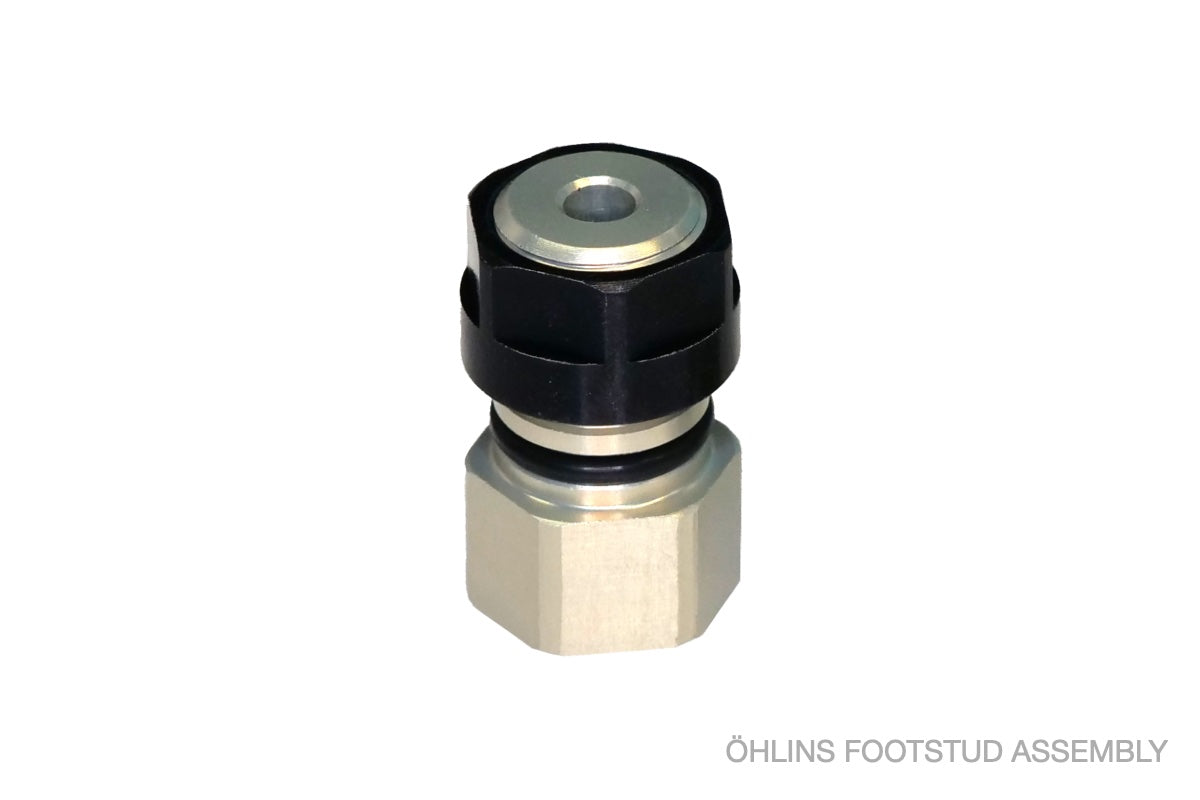

Footstud Öhlins
Footstud Öhlins
CHF 35.00/ea		 CHF 0.00
CHF 35.00/ea CHF 0.00

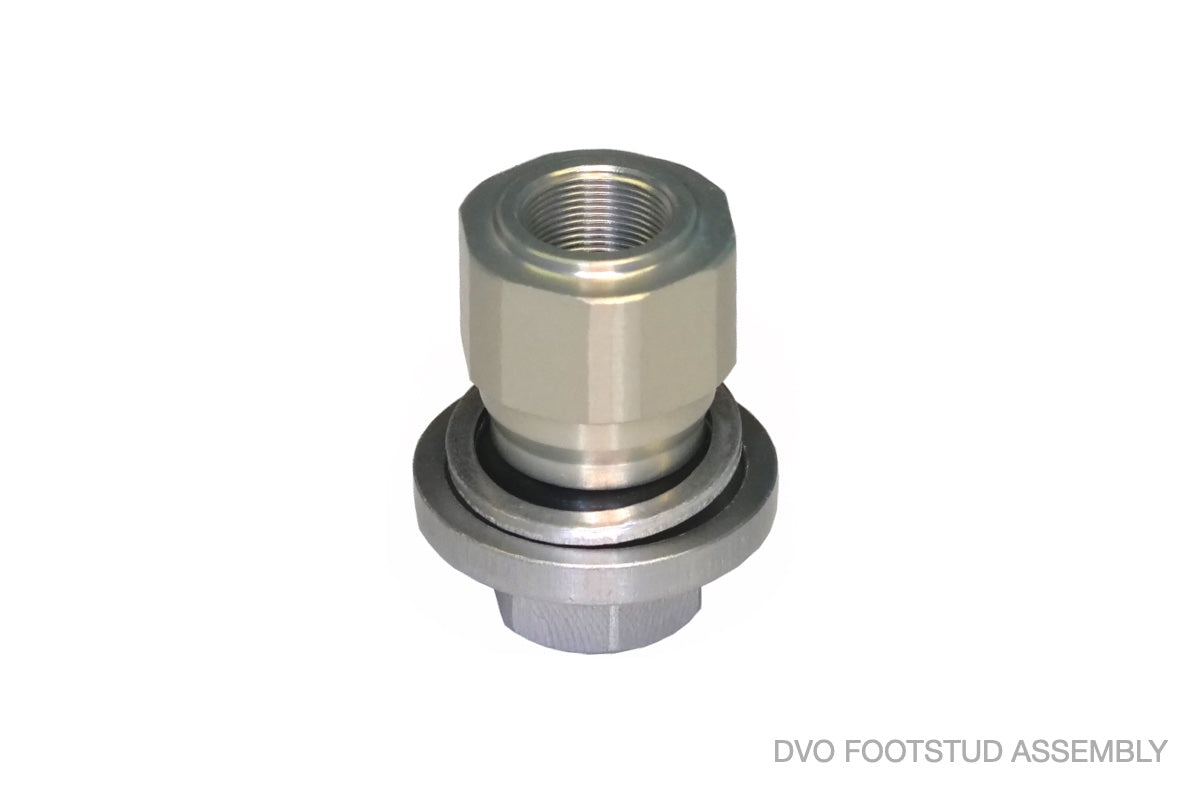

Footstud DVO
Footstud DVO
CHF 35.00/ea		 CHF 0.00
CHF 35.00/ea CHF 0.00
View cart
0

Total items

CHF 0.00

Product subtotal

Taxes included. Discounts and shipping calculated at checkout.
View cart

Vorsprung Parts & Tools

Vorsprung Smashpot V2 Tech Help

Installation Manual

Smashpot V2 Fox / Rockshox / DVO / Öhlins



Diagram



Torque Values

Top cap

Single-Crown: 5.1 Nm

Double-Crown: 8.5 Nm



Top cap to Fork

Fox: 24.8 Nm

Rockshox: 28.2 Nm

Öhlins: 28.2 Nm

DVO: 31.6 Nm



Stud

8.5Nm



Nut

6.2Nm



Oil

All except Fox 40: 80 ml (Motorex 5wt)

Fox 40: 90 ml



Travel Configuration

 Travel (mm) In (Top-Out, mm) Out (Main Spring, mm)
200 (V2 max) 0 10 + secondary spring
190 10 0  + secondary spring
180 20 0  + secondary spring
170 30 30
160 40 20
150 50 10
140 (V2 min) 60 0
