PMB Suspension

Öhlins TTX22m Service

Öhlins TTX22m Service

CHF 240.00
CHF 240.00
Sale Sold out
Taxes included.
Service Level
Tuning Option
Duration

Service pack including disassembly, re-assembly, new seals, new grease, new oil

View full details

Öhlins TTX22m Service Description

Description

  • Service pack including service and parts
  • For Öhlins TTX22m: standard, metric, trunnion, original
  • Include disassembly, re-assembly, new seals, new grease, new oil
  • Recommended every 100h of use (other uses) or at least 1x/year
  • Include everything to maintain performance, reliability, comfort and value

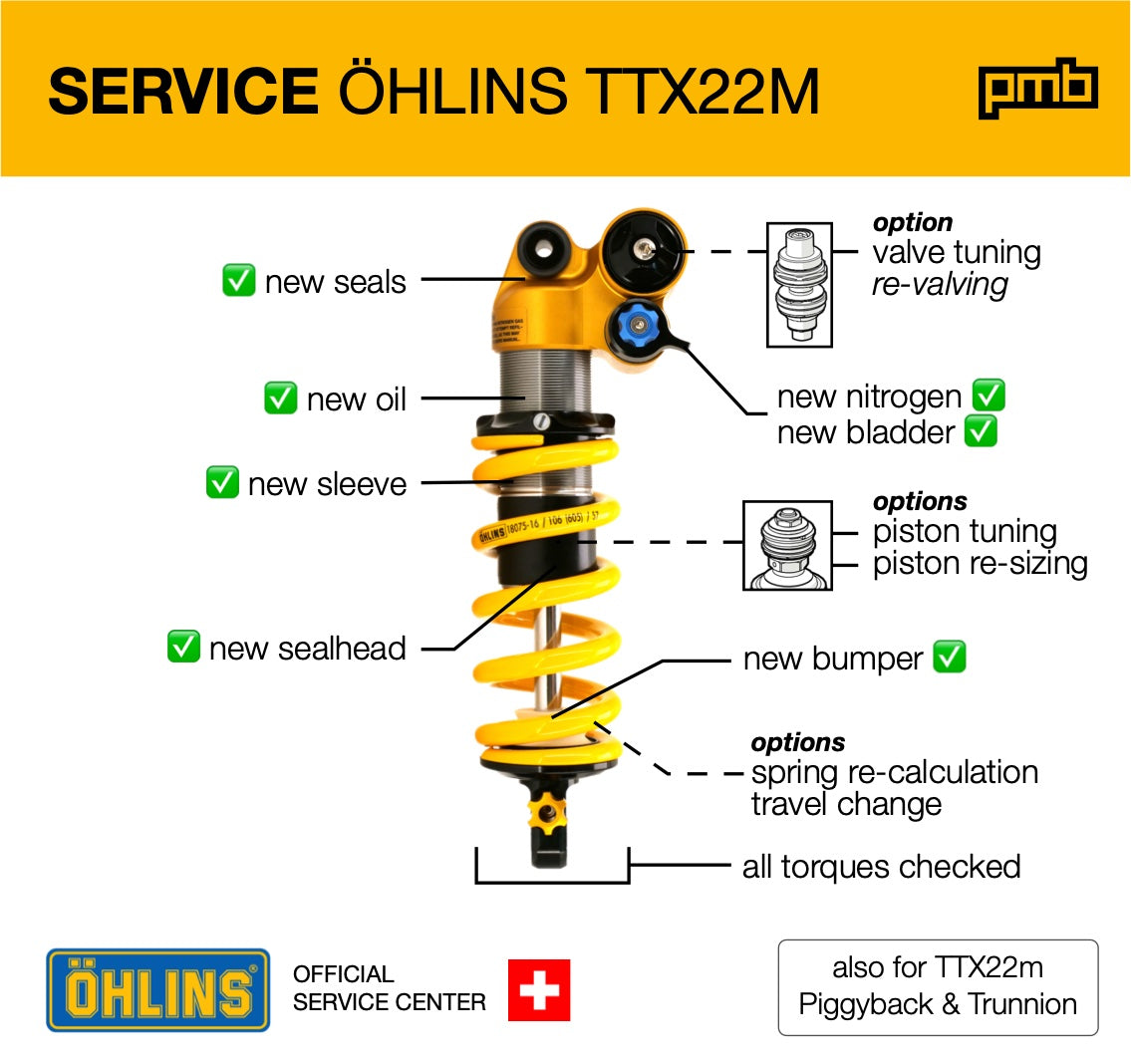

Included

  • Full disassembly
  • Safety checks
  • Each part is checked for function
  • Hydraulic bleed with new high performance oil
  • Replacement of wear parts including seals, sealhead, bladder
  • Reservoir service
  • New nitrogen
  • New bladder
  • New sealhead
  • New seals
  • New bumper
  • New grease
  • Re-assembly and test
  • Service by the official service center for Öhlins MTB: PMB Suspension

Options

  • Tuning: tuning of the piston and base valve to adapt compression and rebound to your weight, bike and practice
  • Travel change: travel change within the limits of your shock: 185/210 mm shocks can do (1)
  • Spring re-calculation: spring rate re-calculation based on your weight, bike and practice
  • Piston resize: reduction of the piston diameter to reduce friction and/or noise

(1) Metric shocks: 55, 52.5, 50, 47.5mm; 205/230mm shocks can do 65, 62.5, 60 or 57.5; 225/250mm shocks can do 75, 72.5, 70 or 67.5mm; Shocks with imperial length (measured in inches, like 10.5" or 8.5") are less standardized in the way travel can be adjusted

After Ordering Your Service

After ordering your service, you can send or bring your suspension:

PMB Suspension

Grand Rue 42

1616 Attalens

Switzerland

    If you need to bring it yourself, please contact us:

    076 572 25 46, contact@pmbswiss.ch

    TTX22m / TTX22m.2 / TTX22m.2R Tuning Information

    TTX22m.2 and TTX22m hydraulic tuning focus on compression and rebound

    The standard setting bank give a wide range of settings for most riders

    New: The all new Racing setting bank give access to fully updated race-proven settings for the most demanding racers

    All tuning follow a race-proven setting bank:

    • Compression: C5, C10, C20, C40, C50
    • DH Compression: DHC40, DHC70
    • DH Racing Compression: DHCR20, DHCR25, DHCR30, DHCR40, DHCR45, DHCR50
    • Rebound: R20, R22.5, R25, R30, R35, R40, R50, R60

    All changes are based on the rider's weight, practice and bike

    Official Öhlins MTB Service Center

    PMB Suspension is the official service center for Öhlins MTB in Switzerland. The collaboration between Öhlins and PMB Suspension began in 2014.
