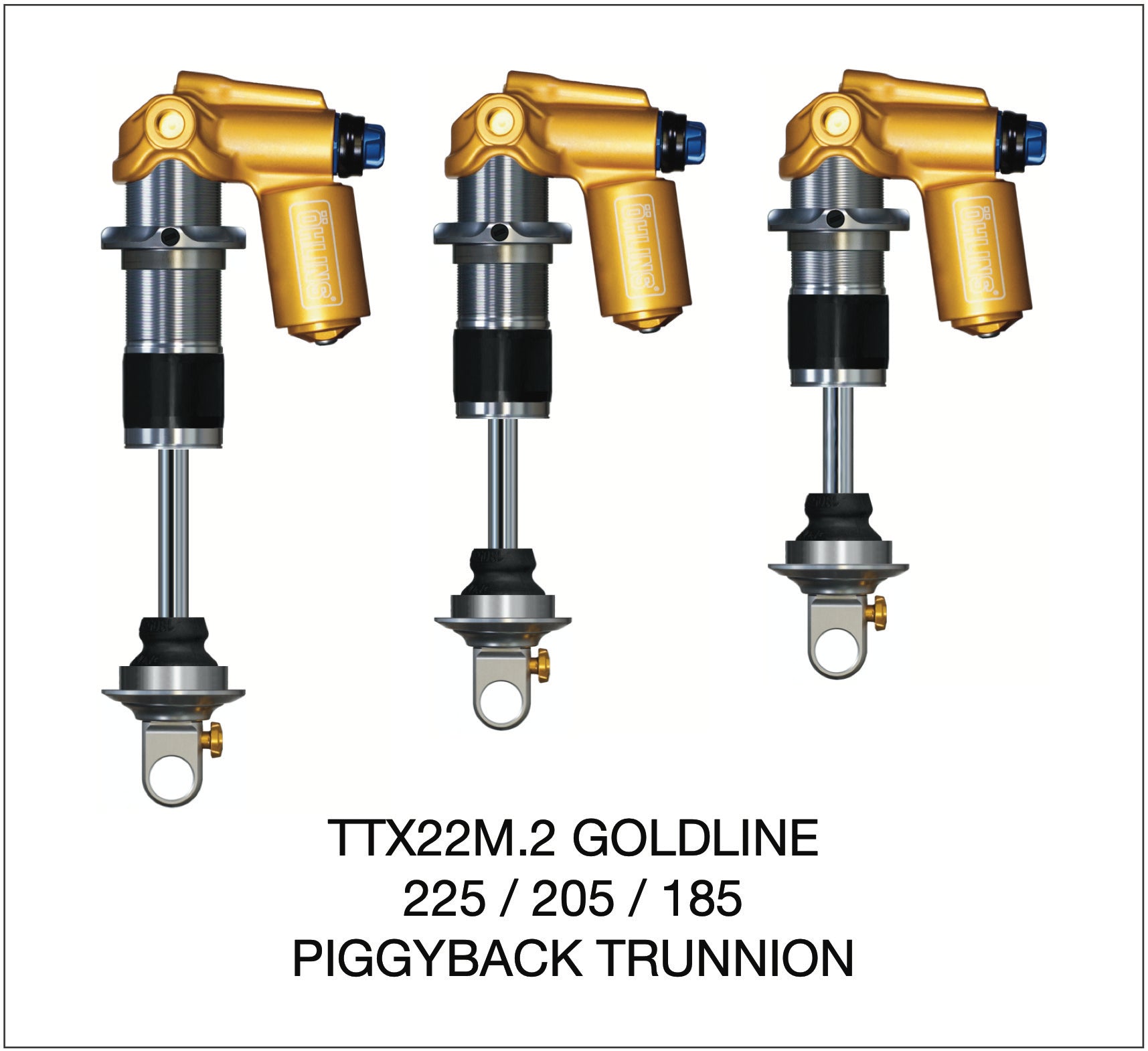

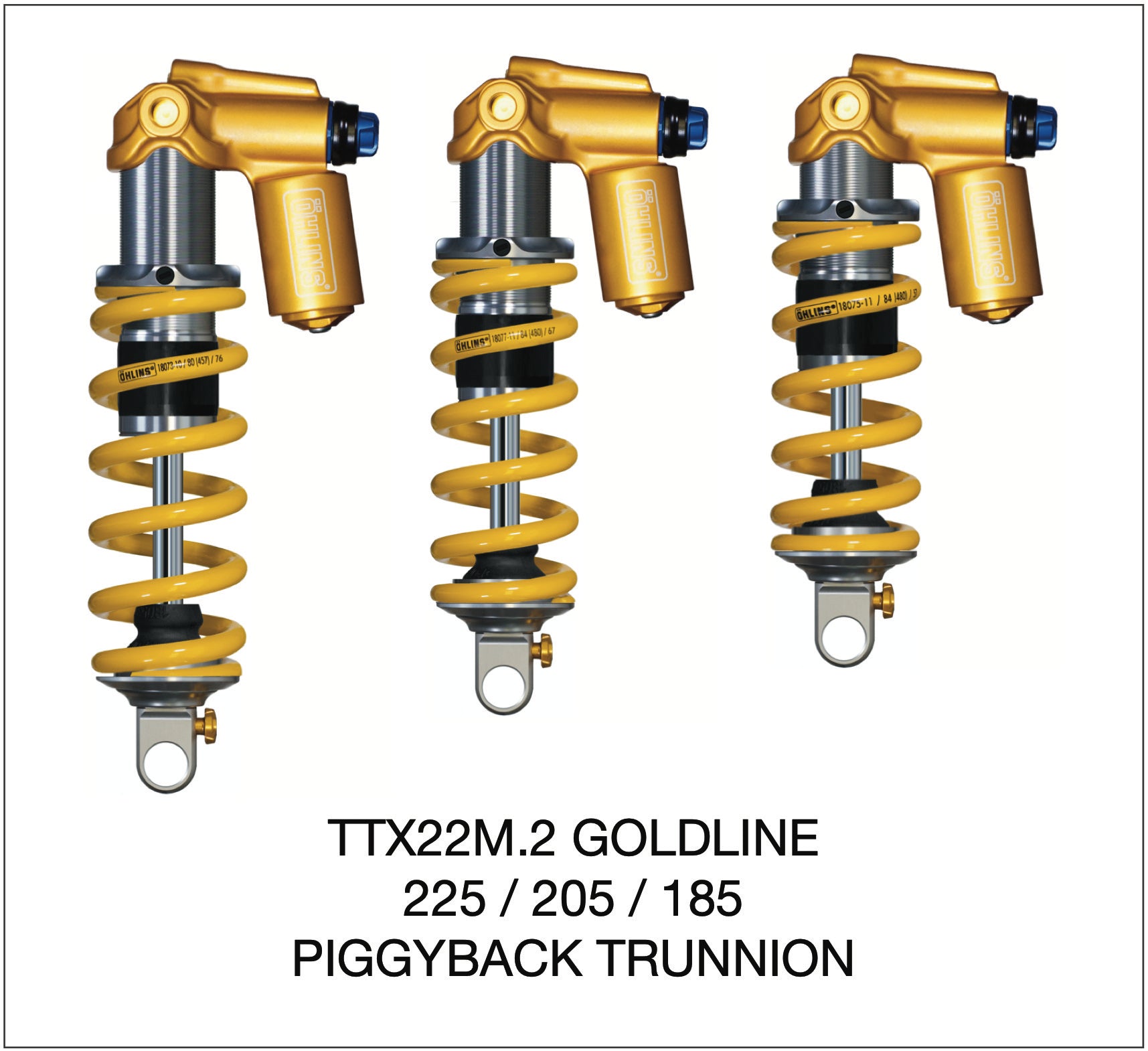

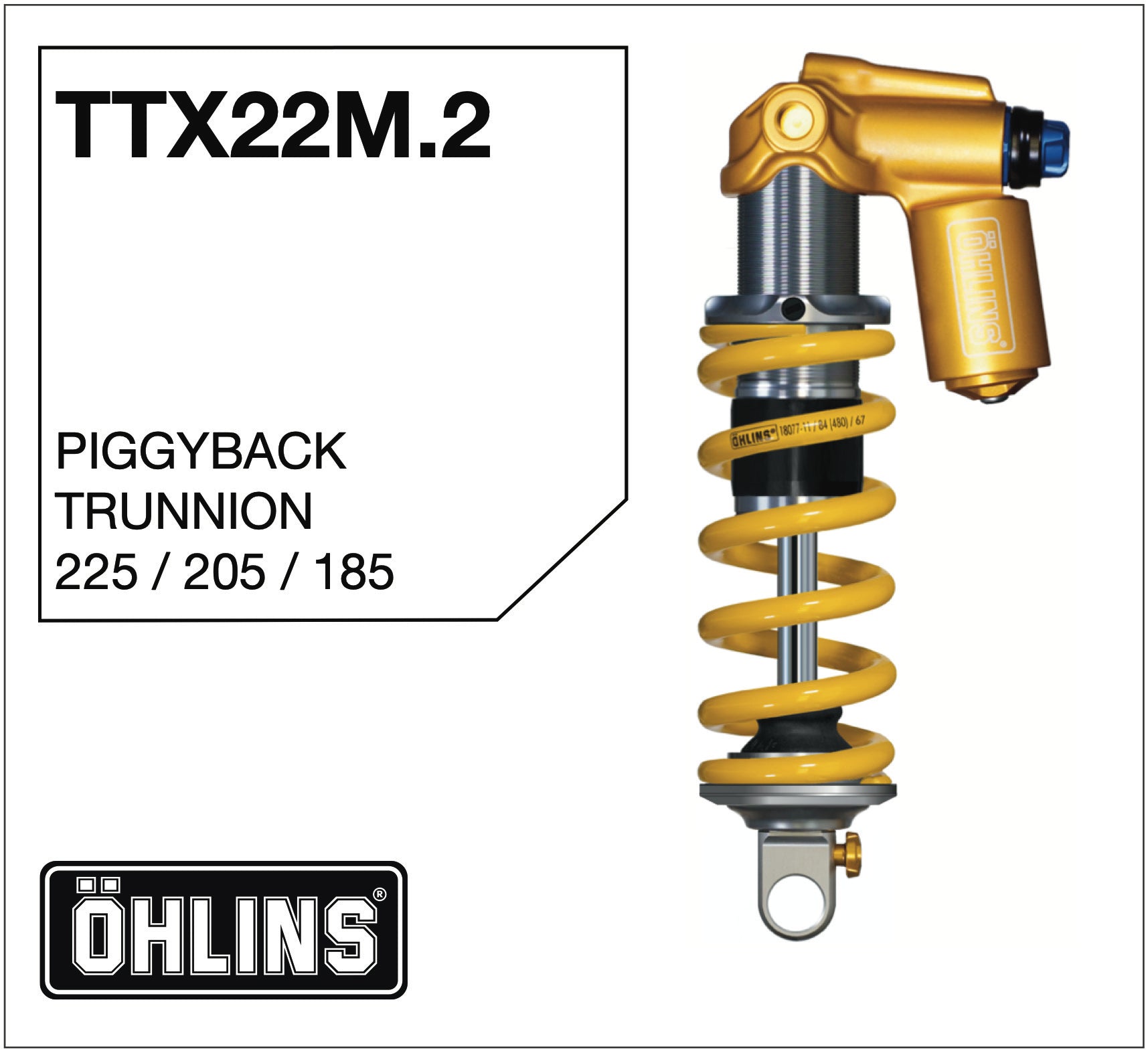

Öhlins TTX22m.2 Piggyback Trunnion

Öhlins TTX22m.2 Piggyback Trunnion

CHF 798.00
CHF 798.00
Sale Sold out
Taxes included.
Length x Travel
Tune

Öhlins coil shock with the latest specifications

Features

  • Öhlins TTX technology Twin-tube
  • Cylinder head with "piggyback" reservoir (parallel to the main tube): make the shock thinner, improve cooling and make it compatible with bikes with a narrow space available for the rear shock
  • Specifically designed for trail and downhill use
  • Possible to adjust stroke with the three 2.5 mm spacers included in the box
  • Suitable for  lightweight springs with 4 Nm/23 lbs increments
  • External, 3 level high-speed compression adjustment
  • External, 16 click low-speed compression adjustment rebound damping adjustment
  • External, 7 click rebound adjustment

SPRING IS NOT INCLUDED

View full details

Öhlins TTX22m.2 Features

Hydraulic System Twin Tube (TTX)
Spring Type Coil
Low Speed Compression (LSC) Adjustment 16 clicks
High Speed Compression (HSC) Adjustment 3 clicks: open, medium, hard
Rebound Adjustment 7 clicks
Remote Adjustement No
Stroke Adjustment Can be done using 2.5mm spacers
Coil spring preload 1.5-2 turrns after the collar touch the spring
Stroke for 185 and 210mm lengths 55, 52,5, 50, 47.5mm
Stroke for 205 and 230mm lengths 65, 62.5, 60, 57.5mm
Stroke for 225 and 250mm lengths 75, 72.5, 70, 67.5mm
Spring serie for 185 and 210mm lengths 18075
Spring serie for 205 and 230mm lengths 18077
Spring serie for 225 and 250mm lengths 18073
Valve for 185, 205, 210 and 230mm lengths Blue Trail compression valve (position 3 = pedal mode)
Valve for 225 and 250mm lenghts Gold DH compression valve
Non-standard length x Travel available on demand (contact us) 190x45, 250/225mm with Blue Valve, 200x57 (8.75x2.25), 230mm Trek (with Trunnion head)
Cylinder heads Side-by-side or Piggyback (external reservoir)
Eyelet size 15mm inner diameter
Service Fully serviceable by qualified Öhlins Service Centers
Durability All parts are made available to qualified Öhlins Service Center
Assembly in Assembly in Switzerland by PMB for all custom units
