Öhlins TTX22m.2 Trek Slash & Rail Custom

Öhlins TTX22m.2 Trek Slash & Rail Custom

CHF 880.00
CHF 880.00
Sale Sold out
Tax included.
Type

LIMITED AVAILABILITY

Description

    Öhlins TTX22M for Trek Slash and Trek Rail
    Custom built, direct mount
    Every unit is built to order

    Features

      Length: 230mm
      Travel: 57.5mm (Trek Slash 2019-2020) or 62.5mm (Trek Slash 2021+)
      Clevis mount for Trek
      Trunnion cylinder head
      Specific valving
      Each unit is built entirely by PMB in Switzerland following Öhlins guidelines
      Spring is not included

      Shipping

        We ship worldwide upon request; contact us
          View full details

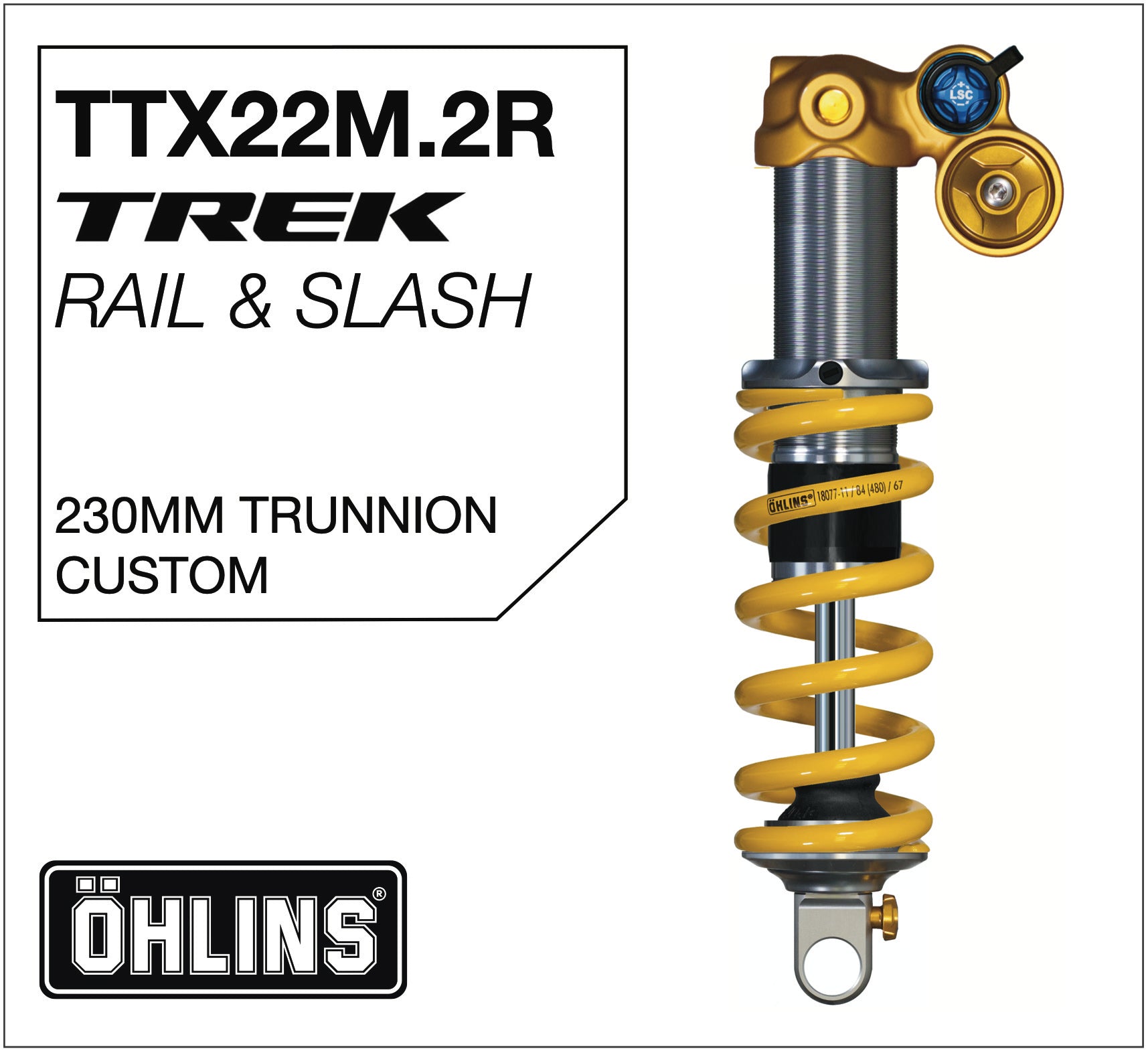

          picture for illustration purposes only and non-contractual - details will vary based on type of build and the availability of parts

          TTX22m.2 / TTX22m.2R Custom Unit Features

          Customs Öhlins rear shocks are built by PMB in Switzerland following a thorough checklist to optimize its fit, performance and durability

          Compression Tuning Adjusted based on the ride + practice + bike geometry
          Rebound Tuning Adjusted based on the ride + practice + bike geometry
          Base Valve Type DH or All Mountain / Enduro depending on rider's practice
          Settings Settings are chosen from a fully up to date setting bank provided by Öhlins Racing AB
          Eyelet TTX22m.2, m.1, original or proprietary depending on the fit with the bike; m.1 and original eyelets are used when they are the only ones compatible with the bike
          Cylinder Head Side by side or piggyback depending on the fit with the bike
          Piston size Each piston is sized to perfection to lower friction and increase durability
          Assembly in Assembly in Switzerland by PMB for all custom units

          TTX22m / TTX22m.2 / TTX22m.2R Tuning Information

          TTX22m.2 and TTX22m hydraulic tuning focus on compression and rebound

          The standard setting bank give a wide range of settings for most riders

          New: The all new Racing setting bank give access to fully updated race-proven settings for the most demanding racers

          All tuning follow a race-proven setting bank:

          • Compression: C5, C10, C20, C40, C50
          • DH Compression: DHC40, DHC70
          • DH Racing Compression: DHCR20, DHCR25, DHCR30, DHCR40, DHCR45, DHCR50
          • Rebound: R20, R22.5, R25, R30, R35, R40, R50, R60

          All changes are based on the rider's weight, practice and bike

          Öhlins TTX22m.2 Features

          Hydraulic System Twin Tube (TTX)
          Spring Type Coil
          Low Speed Compression (LSC) Adjustment 16 clicks
          High Speed Compression (HSC) Adjustment 3 clicks: open, medium, hard
          Rebound Adjustment 7 clicks
          Remote Adjustement No
          Stroke Adjustment Can be done using 2.5mm spacers
          Coil spring preload 1.5-2 turrns after the collar touch the spring
          Stroke for 185 and 210mm lengths 55, 52,5, 50, 47.5mm
          Stroke for 205 and 230mm lengths 65, 62.5, 60, 57.5mm
          Stroke for 225 and 250mm lengths 75, 72.5, 70, 67.5mm
          Spring serie for 185 and 210mm lengths 18075
          Spring serie for 205 and 230mm lengths 18077
          Spring serie for 225 and 250mm lengths 18073
          Valve for 185, 205, 210 and 230mm lengths Blue Trail compression valve (position 3 = pedal mode)
          Valve for 225 and 250mm lenghts Golden DH compression valve
          Length x Travel available on demand 190x45, 250/225mm with Blue Valve, 200x57 (8.75x2.25), 230mm Trek (with Trunnion head)
          Cylinder heads Side-by-side or Piggyback (external reservoir)
          Eyelet size 15mm inner diameter
          Service Fully serviceable by qualified Öhlins Service Centers
          Durability All parts are made available to qualified Öhlins Service Center
          Assembly in Assembly in Switzerland by PMB for all custom units
