PMB Suspension

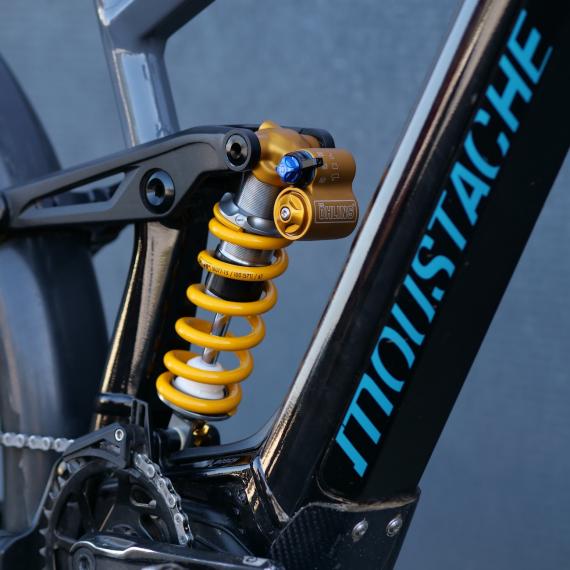

Öhlins TTX22m.2 Moustache Custom

Öhlins TTX22m.2 Moustache Custom

CHF 840.00
CHF 840.00
Sale Sold out
Tax included.
Type
Description
Amortisseur Öhlins TTX22M spécifique pour Moustache, remplace idéalement le l'amortisseur "Just" d'origine en taille 205x65 ou 205x60
Monté à la commande

Caractéristiques
Amortisseur bi-tude coil haut de gamme
Entraxe: 205mm
Débattement: 65 ou 60mm
Hydraulique spécifique pour Moustache tenant compte des caractéristique du vélo
Fixation spéciale pour Moustache
Ressort non compris
Composants au dernier standard m.2 Öhlins
Chaque unité est assemblée individuellement par PMB Suspension en Suisse
Si besoin d'aide au montage, le montage sur vélo en atelier est inclus sans supplément
View full details

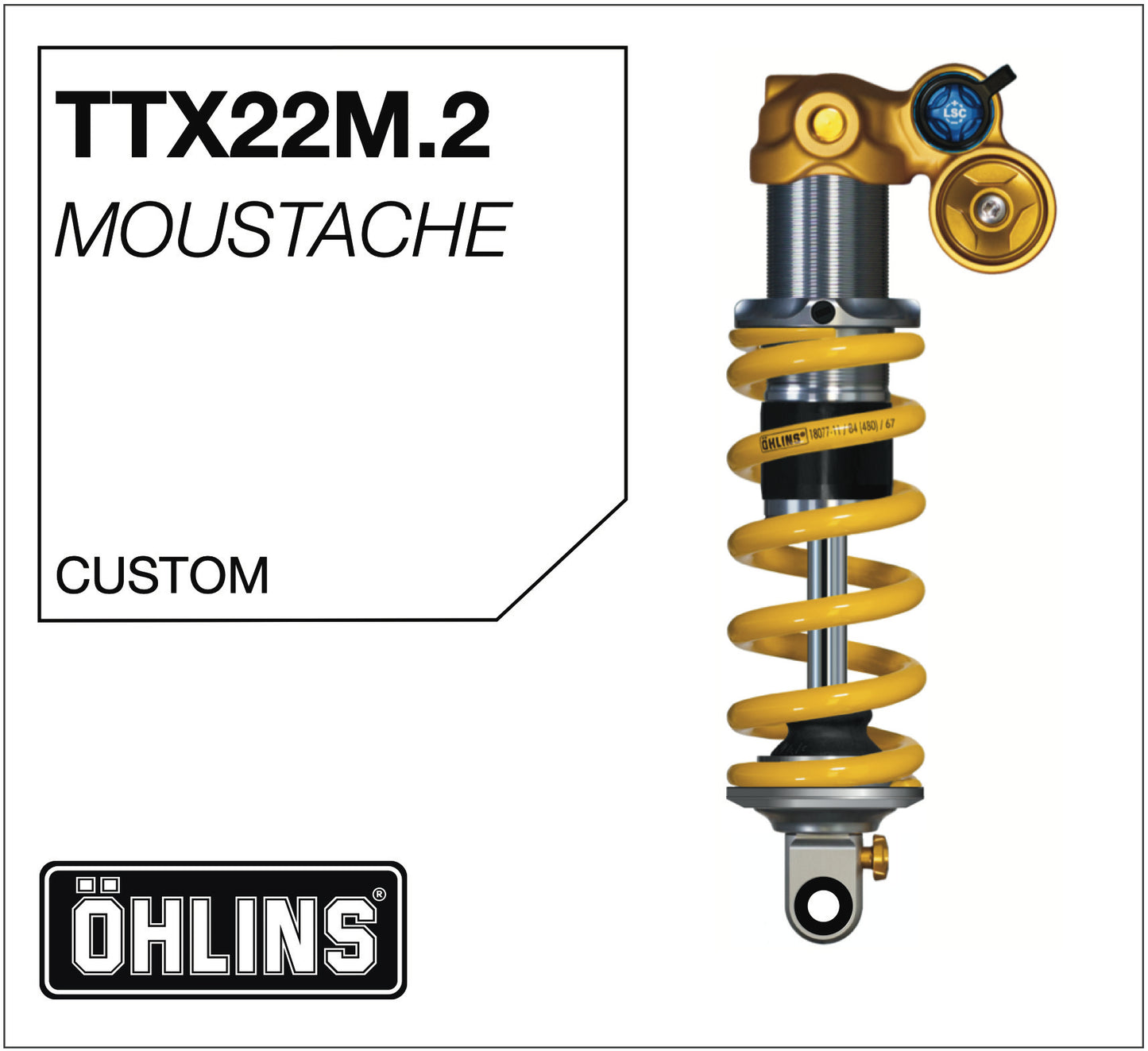

picture for illustration purposes only and non-contractual - details will vary based on type of build and the availability of parts

TTX22m.2 / TTX22m.2R Custom Unit Features

Customs Öhlins rear shocks are built by PMB in Switzerland following a thorough checklist to optimize its fit, performance and durability

Compression Tuning Adjusted based on the ride + practice + bike geometry
Rebound Tuning Adjusted based on the ride + practice + bike geometry
Base Valve Type DH or All Mountain / Enduro depending on rider's practice
Settings Settings are chosen from a fully up to date setting bank provided by Öhlins Racing AB
Eyelet TTX22m.2, m.1, original or proprietary depending on the fit with the bike; m.1 and original eyelets are used when they are the only ones compatible with the bike
Cylinder Head Side by side or piggyback depending on the fit with the bike
Piston size Each piston is sized to perfection to lower friction and increase durability
Assembly in Assembly in Switzerland by PMB for all custom units

TTX22m / TTX22m.2 / TTX22m.2R Tuning Information

TTX22m.2 and TTX22m hydraulic tuning focus on compression and rebound

The standard setting bank give a wide range of settings for most riders

New: The all new Racing setting bank give access to fully updated race-proven settings for the most demanding racers

All tuning follow a race-proven setting bank:

  • Compression: C5, C10, C20, C40, C50
  • DH Compression: DHC40, DHC70
  • DH Racing Compression: DHCR20, DHCR25, DHCR30, DHCR40, DHCR45, DHCR50
  • Rebound: R20, R22.5, R25, R30, R35, R40, R50, R60

All changes are based on the rider's weight, practice and bike

Öhlins TTX22m.2 Features

Hydraulic System Twin Tube (TTX)
Spring Type Coil
Low Speed Compression (LSC) Adjustment 16 clicks
High Speed Compression (HSC) Adjustment 3 clicks: open, medium, hard
Rebound Adjustment 7 clicks
Remote Adjustement No
Stroke Adjustment Can be done using 2.5mm spacers
Coil spring preload 1.5-2 turrns after the collar touch the spring
Stroke for 185 and 210mm lengths 55, 52,5, 50, 47.5mm
Stroke for 205 and 230mm lengths 65, 62.5, 60, 57.5mm
Stroke for 225 and 250mm lengths 75, 72.5, 70, 67.5mm
Spring serie for 185 and 210mm lengths 18075
Spring serie for 205 and 230mm lengths 18077
Spring serie for 225 and 250mm lengths 18073
Valve for 185, 205, 210 and 230mm lengths Blue Trail compression valve (position 3 = pedal mode)
Valve for 225 and 250mm lenghts Golden DH compression valve
Length x Travel available on demand 190x45, 250/225mm with Blue Valve, 200x57 (8.75x2.25), 230mm Trek (with Trunnion head)
Cylinder heads Side-by-side or Piggyback (external reservoir)
Eyelet size 15mm inner diameter
Service Fully serviceable by qualified Öhlins Service Centers
Durability All parts are made available to qualified Öhlins Service Center
Assembly in Assembly in Switzerland by PMB for all custom units
