PMB Suspension
Marzocchi CR WPS
Marzocchi CR WPS
Regular price
CHF 680.00
Regular price
Sale price
CHF 680.00
Unit price
per
Taxes included.
Couldn't load pickup availability
Spring included
"special order" variant may take ~4 weeks to complete
Ressort compris
Les versions "special order" peuvent prendre 4 semaines pour le montage

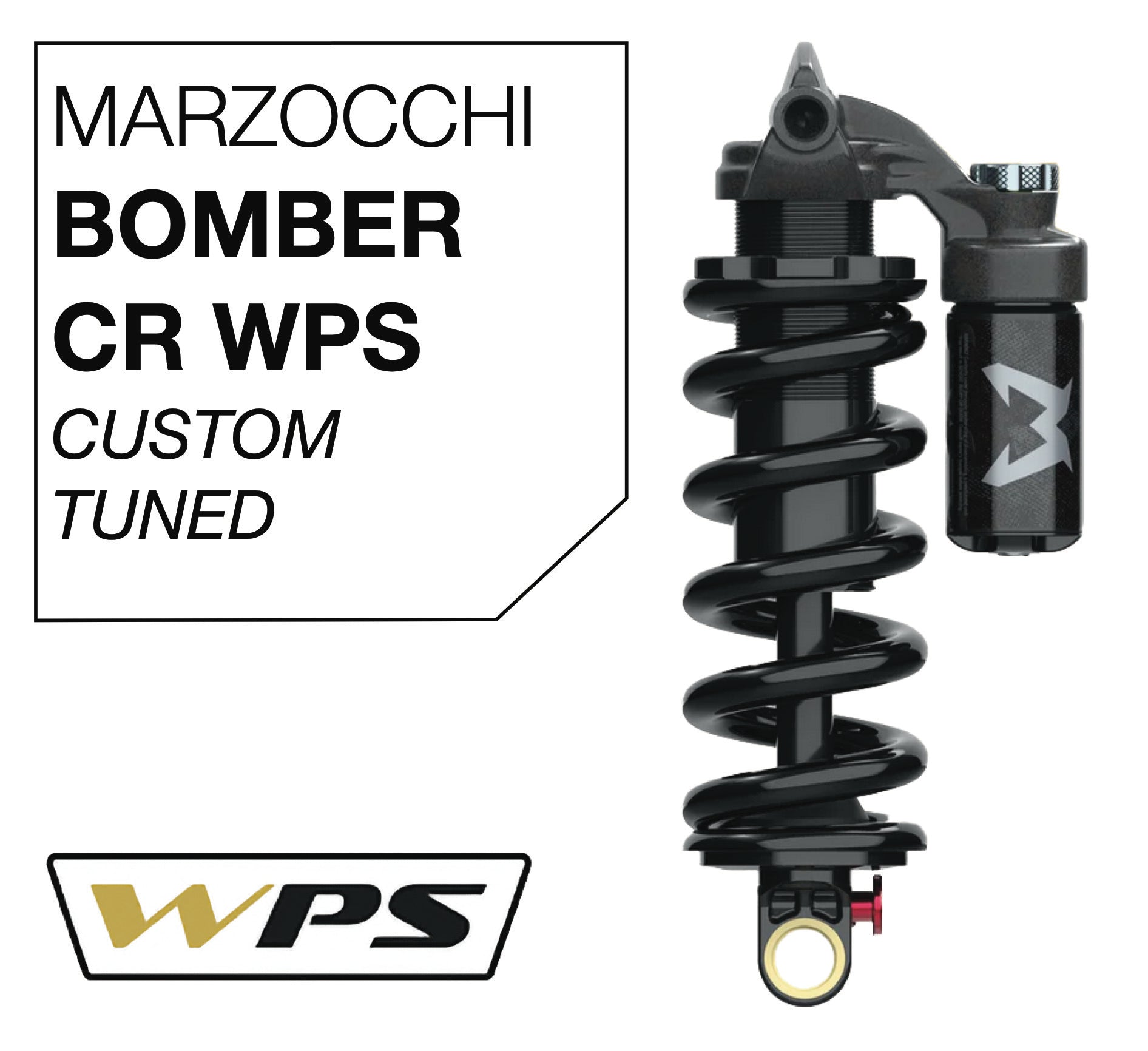

Marzocchi Bomber CR WPS Features
Product Table
| Hydraulic System | Single Tube |
| Spring Type | Coil |
| Compatible springs | All Fox coil springs (no adapter needed), Cane Creek (adapter needed), Öhlins (adapter needed) |
| Adjustability | 2-Ways: compression and rebound |
| Compression Adjustment | 16 (low speed) |
| Rebound Adjustment | 15 |
| Coil spring preload | Yes |
| Tune (internal settings) | 16 different combinations, see below |
| Hydraulic settings (internal) | C1 or C2 or C3 or C4 - set by PMB based on the bike/rider/goals |
| Rebound settings (internal) | R1 or R2 or R3 or R4 - set by PMB based on the bike/rider/goals |
| Remote Adjustement | No |
| Hydraulic Lockout | No, but compression adjustment fully turned in restrict movement |
| Stroke Adjustment | Can be done by a qualified service center using spacers |
| Stroke for 185 and 210mm lengths | 55, 52,5, 50, 47.5 |
| Stroke for 205 and 230mm lengths | 65, 62.5, 60, 57.5 |
| Stroke for 225 and 250mm lengths | 75, 72.5, 70, 67.5 |
| Length x Travel available on demand | Most imperial sizes, including 10.5x3.5 (266x89mm), 7.5x2, 7.875x2, 7.875x2.25, 8.5x2.5, 8.75x2.75 |
| Cylinder heads | Standard or Trunnion |
| Reservoir size | Full size: make sure your bike has enough space |
| Eyelet size | 15mm |
| Service | Fully serviceable by qualified mechanics |
| Durability | All parts available |
| Made in | Assembly in Switzerland, parts from UK and Taiwan |
