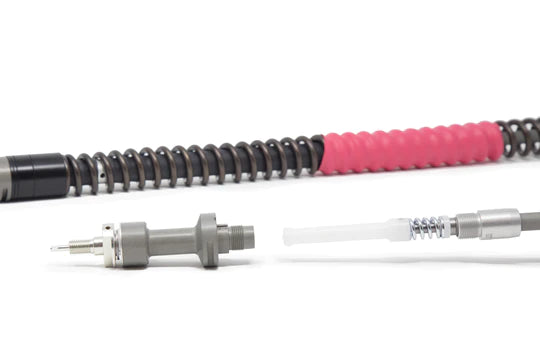

Vorsprung Smashpot - Fork coil spring conversion system
Vorsprung Smashpot - Fork coil spring conversion system
Fork coil spring conversion system for single crown enduro forks, featuring externally adjustable hydraulic anti-bottoming technology to deliver precisely the amount of bottoming resistance you need. The benefits of coil are clear: if your first priority for your fork is outright performance and grip, get yourself a Smashpot.
Features:
- Catering to rider weights from 45kg (100lbs) to 125kg (275lbs) with 10 coil spring rates
- Allows lighter riders to get the most use out of their forks, and heavier riders the support they need without excessive air pressures
- Only coil conversion system on the market allowing 180mm travel (Please note that 190mm is not possible with the Zeb)
- Easily adjust your travel with internal spacers (please note the minimum & maximum travel of your fork as determined by manufacturer)
- Unique Hydraulic Bottom-out System reduces harshness
- Can be transferred between different forks with minimal parts /cost (a purchase of a new top cap or foot stud)
- Reliable and low maintenance, set and forget. User installable and serviceable
- Weight increase of approximately 250-450g (dependent on spring rate and fork's existing spring system)
Les avantages de Smashpot:
-
- Le choix large de ressort permet d'adapter le système aux pilotes allant de 45kg à 125kg
- Permet aux pilotes les plus léger de mieux utiliser le débattement de leur fourche
- Permet aux pilotes plus lourd d'avoir un bien meilleur maintien sans utiliser de pression air excessive
- Seul kit de conversion du marché permettant 180mm de débattement (attention au fait qu'il n'est pas possible de le faire marcher en 190mm sur Zeb)
- Ajustement facile du débattement avec des entretoises internes (attention à bien respecter les limites constructeur du châssis)
-
- Unique: système hydraulique intégré dédié à l'anti-talonnage en fin de course
- Peut se transférer d'une fourche à une autre en remplaçant le top cap et/ou le filetage du bas
- Fiable et peu demandeur en maintenance
- Réglage facile
- Entretien facile
- Ajoute entre 250 et 450gr selon le tarage de ressort choisi et le poids du ressort d'origine
Key Features
- Superior small bump compliance from enlarged negative chamber
- Experience enhanced support and predictability with our proprietary Midstroke Support Valve
- Coil-like plushness and predictability, with air spring bottomlessness
- Enables full use of travel in both directions
- Enhances lubrication with increased lower leg oil volume
- Lightweight at just 130g
- Effortless setup -add air, bounce on it, press MSV charge button, ride
- Compatible with OEM volume spacers
- More consistent spring rate
- Transfer between compatible forks with just a footstud change
Hydraulic Bottom Out
The main advantage of the air spring, besides weight, is the end-stroke resistance. Smashpot include a dedicated hydraulic system for the end-stroke of the Smashpot is active on the last 50 millimeters, preventing bottoming out. The adjustment is external, allowing for fine-tuning to minimize or maximize bottom-out resistance.
Find the right spring for Smashpot
Installation
-
Fox / Rockshox / Marzocchi
-
Ohlins
-
DVO Onyx
